Lewis - LHT Ultimate Brake Set - Titanium bolts & Pistons - Black EZmtb K28 Hoses
The new hotness! Lewis Tech is Paving a path in the World of brakes for Ebike and Mountain bikes!
Lewis Tech LHT Axial Cylinder 4x17mm Titanium Pistons Hydraulic Disc Brake
-

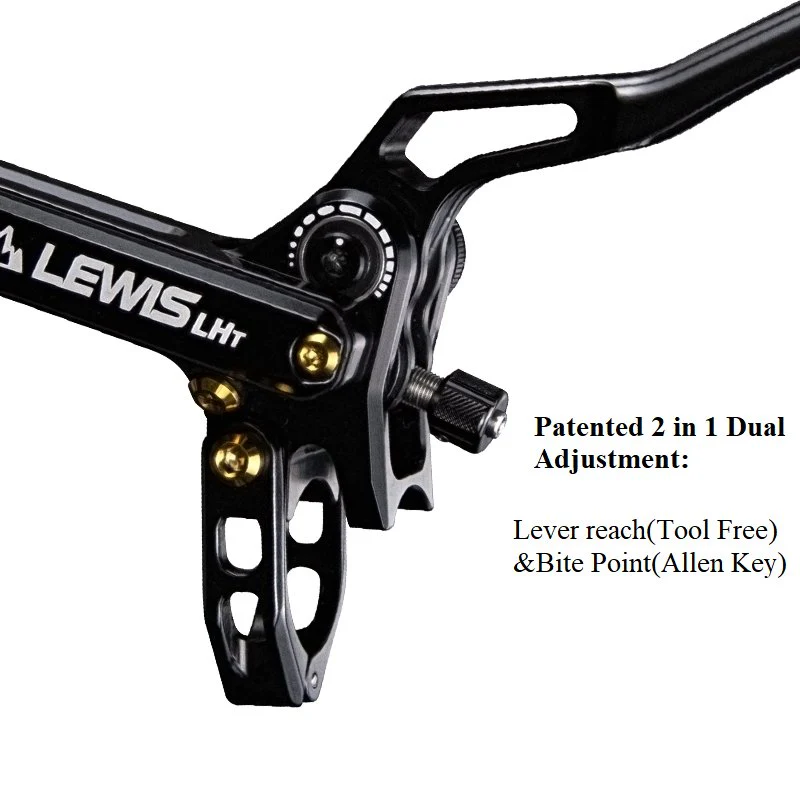

Self-developed patented technologyLewis' patented technology for dual adjustment of lever reach & bite point allows you to customize the feel to your preference for superior performance out on the trails.
Reach(tool free), bite point(with allen key).
-
Free Leverage Ratio AdjustmentThe patented Free Lever Adjustment technology allows the lever ratio to beadjusted by moving the center point of the brake lever.
-
CNC 7075 & Titan Four PistonsUpgraded 4x17mm pistons, with titanium gold screws, high strength and light weight.
-
Self-developed Titanium InsulationIn high-intensity use environments, the good high-temperature thermal conductivity of the titanium material complements the ceramic thermal insulation, allowing the pads to conduct and dissipate heat more evenly.
-
Top Quality K28 HoseK = Kevlar28 = 28 mesh braided per inch, k28 series hose than traditional 4-layer nylon hose, an increase of 40% Kevlar, the use of the latest weaving process technology, density breakthroughs in the highest ever, from the experience, the new series brought about by the change in the brake feel is obvious and can be perceived as a very hard braking feel. Provides a better choice for riders.
-
No-Leak-SystemDetachable Olive Head used in No-Leak-System makes it easier for the rider to disassemble the brake hose.
-
TP-40 Large PadsLHT Ultimate uses a 40mm wide sintered metal TP-40, a larger area meant for better wear resistance and heat decay performance.
| MASTER CYLINDER | |
| Type | Axial |
| Material | CNC 7075T6 Aluminum |
| Body Finish | Black, Silver, Black & Silver, customized colors |
| Clamp Color | Black, Silver |
| Clamp Type | Hinged |
| Screws | Titanium |
| ADJUSTABLE LEVER REACH | YES, Tool Free |
| ADJUSTABLE PAD BITE POINT | Yes, with 2mm Allen key |
| LEVER BLADE | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| Brake lever version | 1 Finger |
| CALIPER | |
| Material | CNC 7075 T6 Aluminum |
| Color | Black, Silver, Black & Silver, customized colors |
| MOUNT TYPE | Post mount |
| Piston | 4 x 17mm Titanium + Ceramic Pistions |
| Screws | Titanium |
| Pad type | Metallic |
| Hose | |
| Hose size | Outside Diameter 5mm,Bore 2.2mm |
| Hose length | 90cm front /160 cm rear, can be shorten to adapt bike |
| Hose finish | Black, Braided |
| INTENDED USE | Enduro, Downhill, All-Mountain, E-bike, Dirtbike |
| Rotors | Not included, optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm) |
| Adapter | Not included |
| WEIGHT | Cylinder 94g, Caliper 117g |
| Oil | Mineral oil |
| Bleed Kit Recommendation | EZMTB 2022std |
4 *17mm-piston caliper designed for tougher challenging trails.
Patented 3 Adjustment Technologies for Leverage Ratio & Lever Reach & Bite Point.
Front+Rear Brakes weight = 639g(Oil Hose included), 422g without Oil Hose.

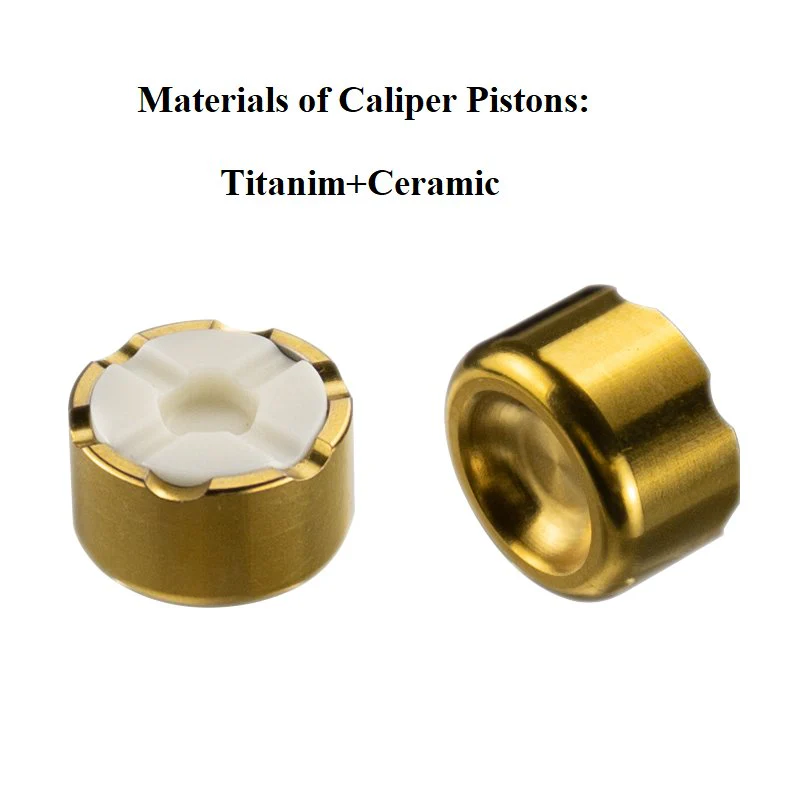

4x17mm Titanium+Ceramic pistons with large metal sintered pads.

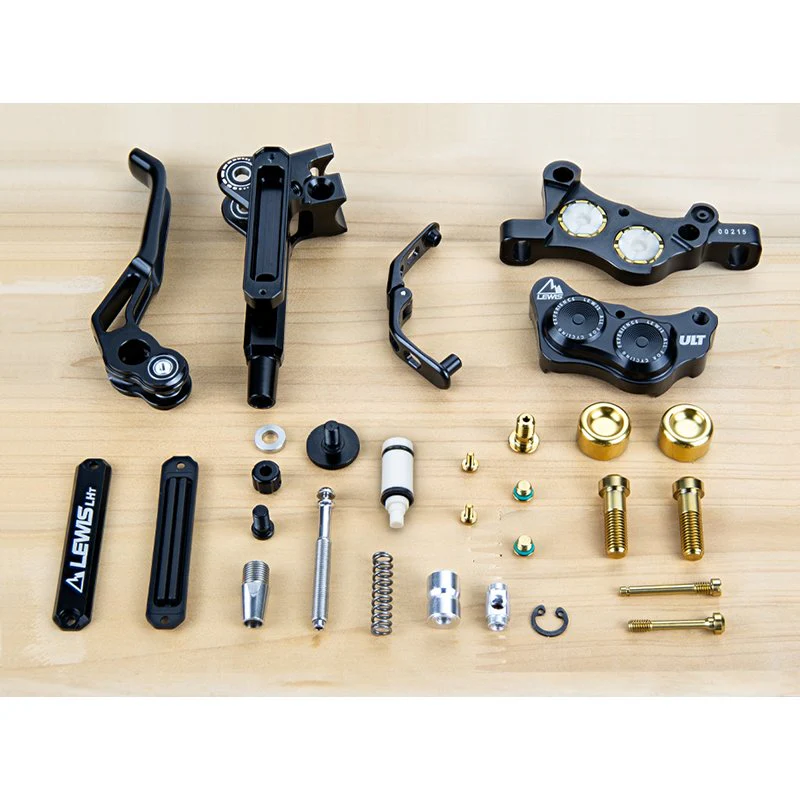

A pair of brakes uses a total of 8 Titanium pistons and 18 Titanium screws for each component.
Approx. 68g for titanium parts, 107g for stainless steel parts, cumulative weight reduction of approx. 39g
Upgraded hinged clamp, no fray bike handlebar.
Easy Bleeding Technology.
Mineral Oil and Kevlar K28 hose.
High-precision CNC machining technology.
Powerful but predictable braking force.
Ultra light lever action.
Bearing pivots provide superior modulation and feel.
