Apollo RFN Ares Rally DLX Electric Dirt Bike | 43ah battery | With headlight (Latest 2024 Model)

Product image 1
1 / 9
+4

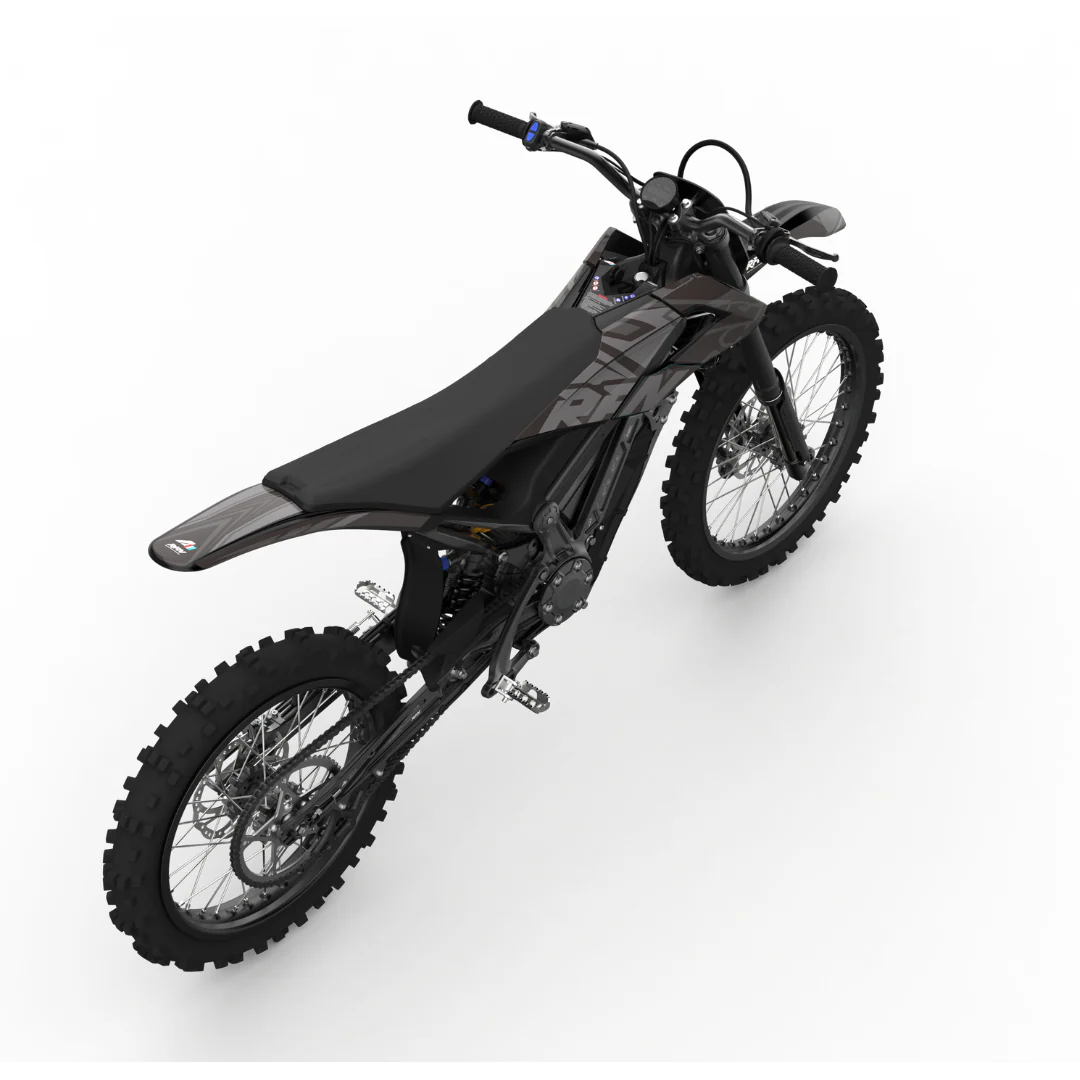

Apollo RFN Ares Rally DLX Electric Dirt Bike | 43ah battery | With headlight (Latest 2024 Model)

FAST SHIPPING. 2-YEAR WARRANTY.

Introducing the Apollo RFN Ares Rally DLX Electric Dirt Bike - This is Apollo's answer to the electric dirt bike. NOW WITH A HEADLIGHT! Top speed 20mph, range of up to 100 miles, and a 12.5Kw motor, the RFN Ares is a real dirt bike with a powerful electric drivetrain. This is the 2023 model with the rectangle display. this has the Headlight with larger battery.

  • CITY RANGE : 100MILES
  • PEAK POWER: 12.5KW
  • CURB WEIGHT: 154LBS
  • BATTERY: 74V 43AH
  • SHOCK ABSORBERS: 200MM
  • TOP SPEED: 20mph

POWER

 11-58T Max Torque 305 N·m (Max Torque of rear wheel: 305 / N-m

Battery

43ah 74V, LG Premium 21700 lithium cells, removable, can be charged on a bike or separately.

Brakes

Front and Rear 4-piston hydraulic disc, 210mm

Charging

 2-3h with Quick Charge Function

Controller

 Sine wave, Best-in-class power density, and state-of-the-art motor control algorithms.

Electric motor

 Air-cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420

Ships in 3-5 business days, arrives from Shipping location to customer in 3-5 business days from the day it shipped.

Drivetrain

Electric motor: Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chains with DX

Sprocket: 13T-58T

Rated power: 5 kW

Peak power: 12.5 kW**

Max Torque of motor: 58 N·m

Max Torque of rear wheel: 305 N·m

Dimensions

Fork angle: 340mm - 13.39''

Offset: 15mm in triple clamps, 45mm in forks.

Seat height: 860mm - 33.86''

Trail: 111mm - 4.37''

Wheelbase: 1330mm - 52.36''

Fenders & Bodywork

Material: PP/ABS plastic

Frame

Build: 6082 aluminum extruded, forged, CNC machined, and steel frame.

Front Suspension

Upside Down, 200mm travel, Fully adjustable

Handlebar

6061 aluminum, 760mm length



Rear Suspension

Mono-Shock, 74mm travel, adjustable

Regulatory

Certificate: CE

Ride modes

Mode 1: Tortoise mode: The ultimate mode of energy conservation exploration. Limited to 25 km/h with 3.5 hours battery range.

Mode 2: Rabbit mode: Enduro or active trail riding. 1-2 h riding time.

Mode 3: Rocket mode: Track and race mode, maximal torque and speed, riding time up to 60 Sec.

Mode 4: Reverse mode: Limited to 9 km/h.

Speed & Range

Range: 160 Km  (Test data Load: 75 Kg, 20 Km/h uniform speed, ambient temperature: 25 °C, flat pavement, standard tires, standard tire pressure)

Weight

N.W of Battery: 15 kg

N.W of the whole bike: 68 kg

Max load: 120kg

Wheels & Tires

Hubs: Forged and CNC aluminum RFN hubs with 20mm axle.

Rims: F 19"/ R 18" (Motorcycle standard) re-enforced, triple chamber, 7050 aluminum.

Tires: F: CST CM721 70/100-19 off-road, R: CST CM722 90/100-18 off-road








Disclaimer:
This product was designed and intended for off-road and closed-course use only. Prohibited for use on public streets, sidewalks, bike paths, or other municipal property, unless otherwise posted. Refer to local city, county, state, and federal regulations before riding. Purchasers must be 18 years or older or have parent or guardian's permission. Always wear approved safety gear, and ride responsibly.
