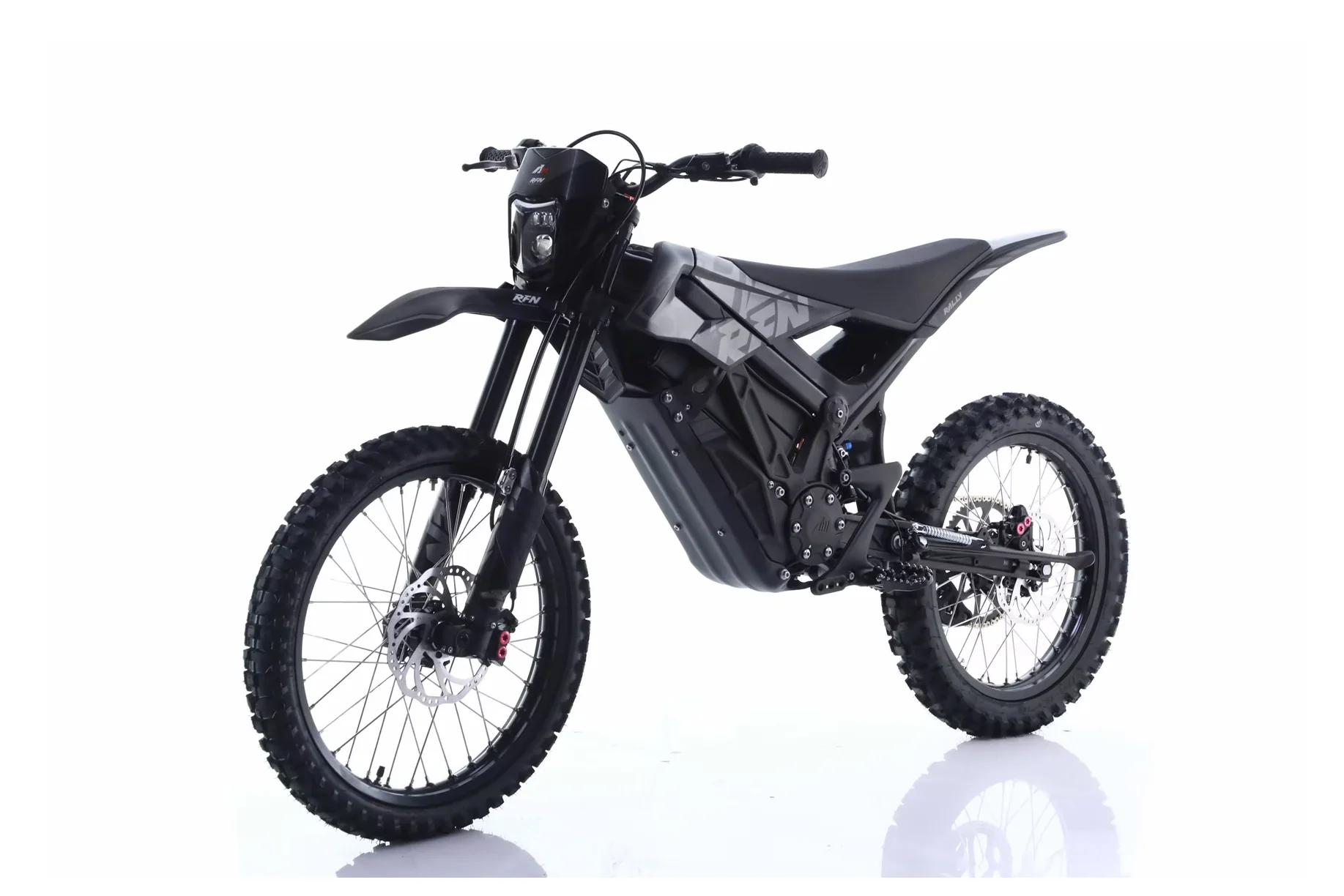

Apollo RFN Ares Rally Pro Electric Dirt Bike (Latest 2024 Model)
RFN ARES RALLY | By RFN | For Electric Dirt Bike Riders
German Award Winning Electric Dirt Bike
The RFN Ares Rally is built for riders who want real off road performance with long range, high torque, and a full size dirt bike stance. This platform earned recognition at the 2023 German Design Awards for its engineering, durability, and clean integration of power and control. If you want a purpose built electric dirt bike that feels planted, hits hard, and carries serious range, the Ares Rally delivers.
Battery System
- Capacity: 43Ah / 2590Wh
- Voltage: 72V nominal
- Cells: 18650 lithium cells
- Design: Removable pack, charges on or off the bike
Drivetrain
- Motor: Internal Rotor Permanent Magnet Synchronous Motor
- Nominal Power:5.0 kW
- Peak Power: 12.5 kW
- Torque (motor axle): 69 N·m
- Torque (wheel): 364 N·m
- Chain: 420 chain with DX
- Front Sprocket: 11T
- Rear Sprocket: 58T
-
Drive Type: Direct chain drive, right side
Charging
- 0 to 80 percent: 1 to 2 hours
- 0 to 100 percent: 2 to 3 hours
- Charger Type: Variable voltage external charger for 100V to 240V outlets
- Charging Input: Quick charge 5A at 220V AC
- Charging Power: 840W at 84V 10A DC
Ride Modes
- Mode 1: Turtle Mode, up to 96km at 45km/h
- Mode 2: Rabbit Mode, up to 50km at 78km/h
- Mode 3: Rocket Mode with catapult start, peak current 150A, no time limit
- Mode 4: Reverse Mode limited to 9 km/h
Chassis & Dimensions
- Frame: 6082 aluminum, extruded and forged, modular design
- Rear Swingarm: 6082 forged aluminum alloy
- Seat Height: 860mm / 33.86 inches
- Ground Clearance: 320mm / 12.60 inches
- Wheelbase: 1330mm / 52.36 inches
- Fork Angle: 24 degrees
-
Offset: 15mm in triple clamps, 45mm to 48mm in forks
Suspension
- Front: Upside down air forks, 45mm to 48mm stanchions, double shoulder adjustable damper, 200mm travel
- Rear: 240mm shock, compression and rebound adjustable, spring preload adjustable
- Rear Wheel Travel: 150mm to 180mm depending on setup
Wheels & Tires
- Hubs: Forged and CNC machined aluminum RFN hubs, 20mm axle
- Rims: F19 / R18 reinforced motorcycle spec with straight pull spokes, 7116 aluminum
- Tires: Kenda K783 off road, front 70/100 19 and rear 90/100 18
Performance
- City Range: Up to 90 miles
- Top Speed: 50 mph
-
Curb Weight: 32 lbs listed (likely incomplete spec)
Fitment
- RFN Ares Rally platform only
- Uses RFN spec hubs, axle, and rim sizing
- Standard F19 / R18 tire sizing supports common dirt bike options
Award Winning Design
The Ares Rally earned a 2023 German Design Award for its engineering and category leading performance. Riders praise its durability, torque delivery, and balanced handling across technical trails, city runs, and open dirt sections.
Disclaimer
Product decoration and specifications may change without notice. Images shown may include optional accessories. Always review full terms for warranty and use. Not fully waterproof, only water resistant.
Disclaimer:
This product was designed and intended for off-road and closed-course use only.
Prohibited for use on public streets, sidewalks, bike paths, or other municipal property,
unless otherwise posted. Refer to local city, county, state, and federal regulations
before riding. Purchasers must be 18 years or older or have parent or guardian's
permission. Always wear approved safety gear, and ride responsibly.
